Board Description

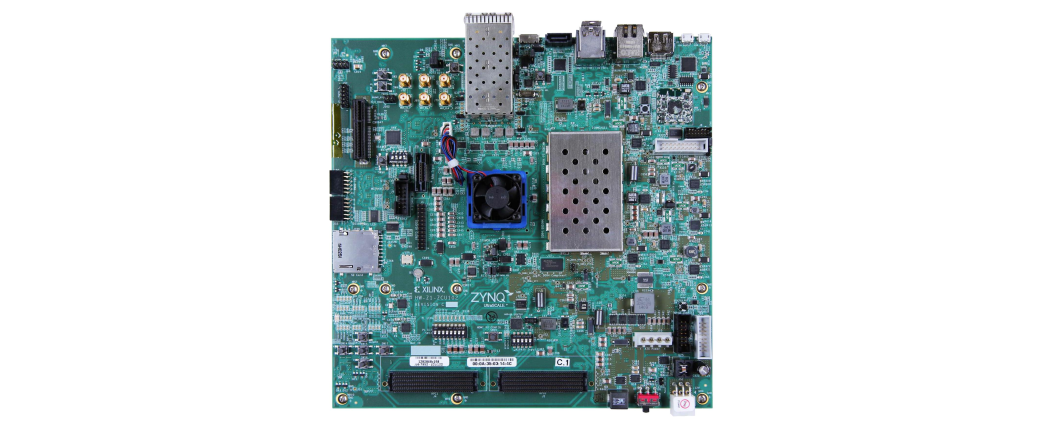

The ZCU102 Evaluation Kit enables designers to jumpstart designs for automotive, industrial, video, and communications applications. This kit features a Zynq® UltraScale+™ MPSoC with a quad-core Arm® Cortex®-A53, dual-core Cortex-R5F real-time processors, and a Mali™-400 MP2 graphics processing unit based on Xilinx's 16nm FinFET+ programmable logic fabric. The ZCU102 supports all major peripherals and interfaces, enabling development for a wide range of applications.
Benefits
- Optimized for quick application prototyping with Zynq UltraScale+ MPSoC
- DDR4 SODIMM – 4GB 64-bit w/ ECC attached to processing system (PS)
- DDR4 Component – 512MB 16-bit attached to programmable logic (PL)
- PCIe® Root Port Gen2 x4, USB3, Display Port, and SATA
- 4x SFP+ interfaces for Ethernet
- 2x FPGA Mezzanine Card (FMC) interfaces for I/O expansion, including 16 16.3Gb/s GTH transceivers and 64 user-defined differential I/O signals
Features
- System Logic Cells (K): 600
- Memory (Mb): 32.1
- DSP Slices: 2,520
- Maximum I/0 Pins: 328
MPSoC ZCU102 Zynq Ultrascale +
Useful Scripts
Official Documentation
Zynq UltraScale+ MPSoC ZCU102 Evaluation Kit Overview:
https://www.xilinx.com/products/boards-and-kits/ek-u1-zcu102-g.html
ZCU102 Evaluation Board User Guide:
https://docs.xilinx.com/v/u/en-US/ug1182-zcu102-eval-bd
Vivado Design Suite User Guide Getting Started:
https://www.xilinx.com/content/dam/xilinx/support/documents/sw_manuals/xilinx2021_2/ug910-vivado-getting-started.pdf
